ELP Sony IMX291 USB 3.0 Webcam MJPEG YUY2 50fps 2Megapixel High Speed UVC OTG 1080P Camera Module for Android Linux Windows Mac-in Surveillance Cameras from Security & Protection

Scroll to product details, material & care and sizing

$ 58.52

Add to cart Add to wishlist

Term:

ELP Sony IMX291 USB 3.0 Webcam MJPEG YUY2 50fps 2Megapixel High Speed UVC OTG 1080P Camera Module for Android Linux Windows Mac Details & Specification :

Item Specifications
Brand Name ELP
Style Mini Camera
Type Usb camera module
Connectivity USB
Supported Operating Systems Windows 10
Supported Operating Systems Windows 8
Supported Operating Systems Mac os
High Definition 1080P(Full-HD)
Lens (mm) 6mm
Installation Normal
Dimensions (L x W x D)(mm) 38*38mm
Supported Mobile Systems Android
IR Distance(m) 0
Special Features High frame rate 50fps
Power Consumption(W) DC 5V/ current: 150mA
Storage None
is_customized Yes
Color Black
Minimum Illumination(Lux) 0.01Lux
Sensor CMOS
Power Supply(V) 5V
Model Number ELP-SUSB1080P01-L60
Network Interface None
Viewing Angle 60°
Sensor Brand Sony
Video Compression Format MJPEG
Power Supply usb bus power
TF Card None
Image Sensor Sony IMX291
Resolution 1920X1080P, 2megapixel
Lens 6mm lens( 2.8/3.6/8mm lens optional)
High frame rate frame MJPEG/YUY2 @ 50fps/ USB3.0 (at 480P/720P/1080P)
Dynamic Range 65dB
Mini illumination 0. 01lux
Connecting Port type USB3.0 High Speed
Shutter Type Electronic rolling shutter / Frame exposure
Cable standard 1m cable
Operating system request Android, Linux, windows8 or above, MAC 10.4.8 or later
Pixel 2MP



related-products





ELP Sony IMX291 USB 3.0 Webcam MJPEG YUY2 50fps 2Megapixel High Speed UVC OTG 1080P Camera Module for Android Linux Windows Mac



Package includes:



1) 1PC 2mp usb3.0 camera module with 6mm lens (2.1/2.8/3.6/8/12mm lens optional)

2) 1PC 1m usb cable



features


*2.0Megapixel USB 3.0 Camera Module

*High quality 1/2.8 SONY IMX291 Color CMOS Sensor

*High speed USB 3.0 interface.

*High frame rate- deliver MJPEG /YUY2 50 fps in 1080 /720P /480P resolution.

*Super small outline 38*38mm and thin profile for embedded applications.

UVC compliance for use in OS Windows,Linux, Android

*Operating system request : Win8 or above  , Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC

*6mm(2.1/2.8/3.6/8/12/16mm lens,  fisheye optional  )

*OTG Support


specification

1. Main Specifications

Model

ELP-SUSB1080P01-L60

Sensor

IMX291

Lens Size

1/2.8 inch

Pixel Size

2.9µm X 2.9µm

Max. Resolution

1920(H)X1080(V)

Compression format

MJPEG  / YUV2(YUYV)

Resolution & frame

1920X1080 [email protected] 50fps/ USB3.0 1920X1080 [email protected] 50fps

1280X720 [email protected] 50fps / USB3.0 1280X720 [email protected] 50fps

[email protected] 50fps / USB3.0 640X480 [email protected] 50fps

S/N Ratio

40dB

Dynamic Range

65dB

Sensitivity

1900mV/[email protected]

Mini illumination

0. 01lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB3.0 High Speed

Free Drive Protocol

USB Video Class(UVC)

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

 6mm lens (2.8mm/3.6mm/8/12mm lens optional)

Power supply

USB BUS POWER

Operating Voltage

DC5V

Working current

170mA~210mA

Working temperature

0-70 degree

Board size /Weight

38*38mm

Cable

Standard  1M

Operating system request

Win8 or above

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

Applications



used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine
, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.



product-display

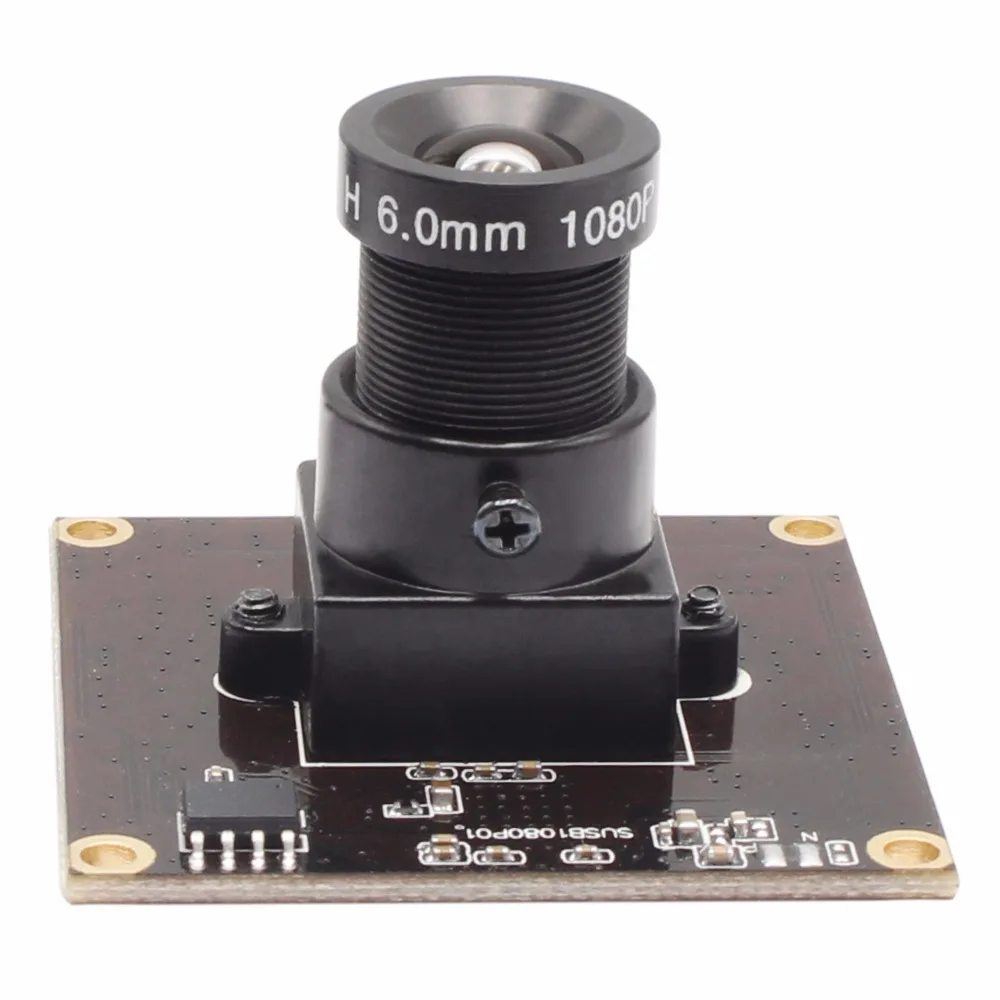

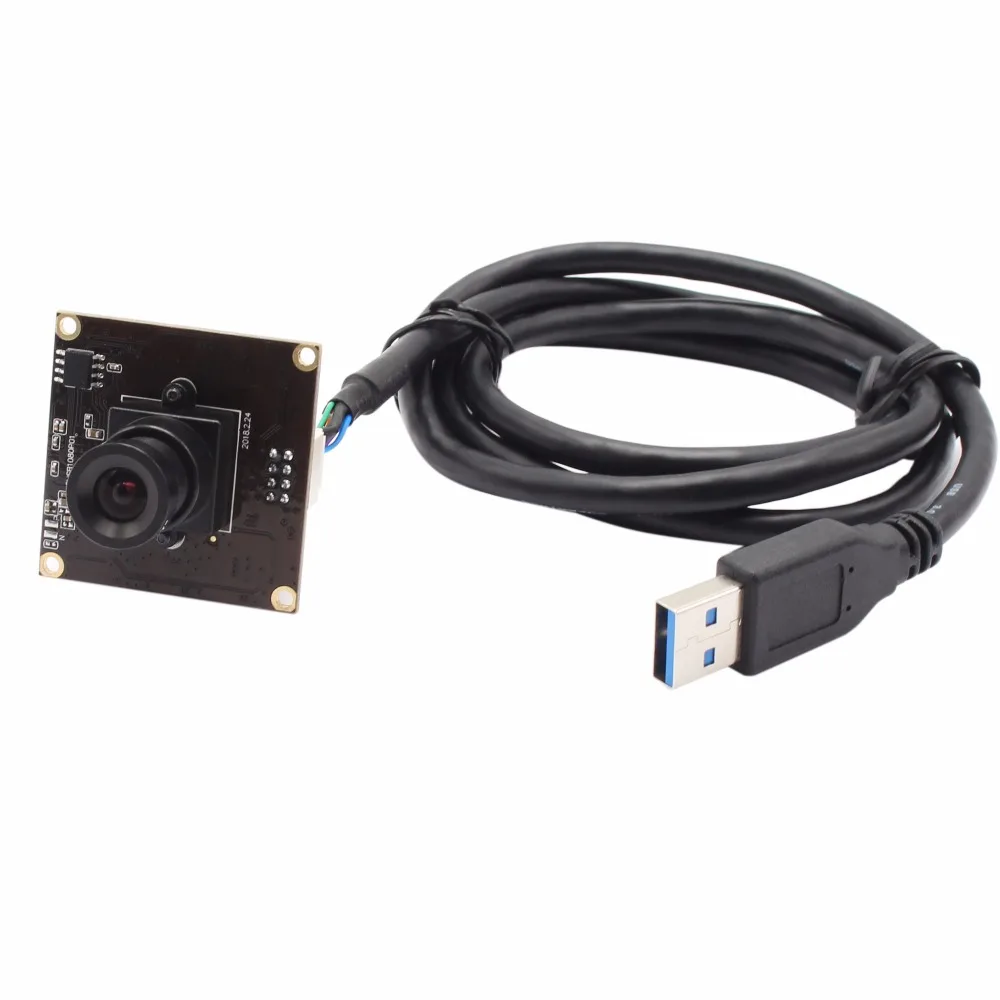

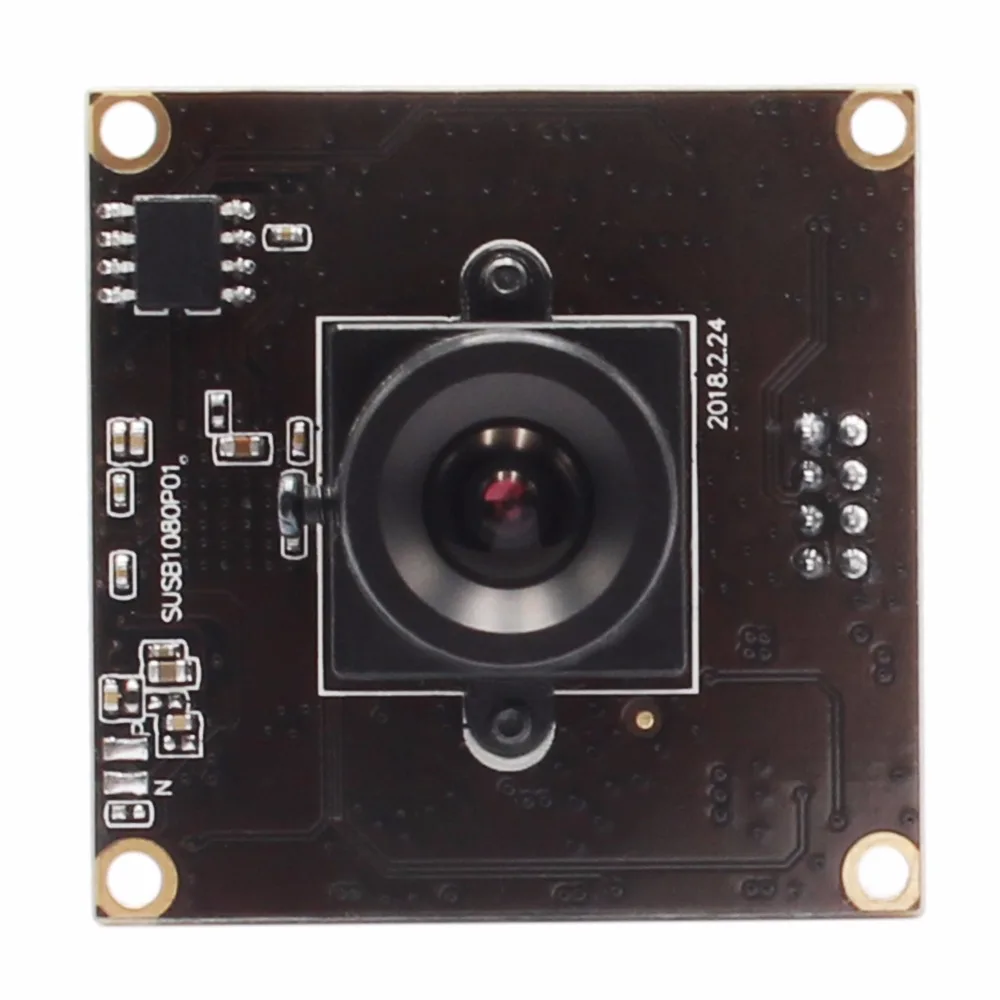

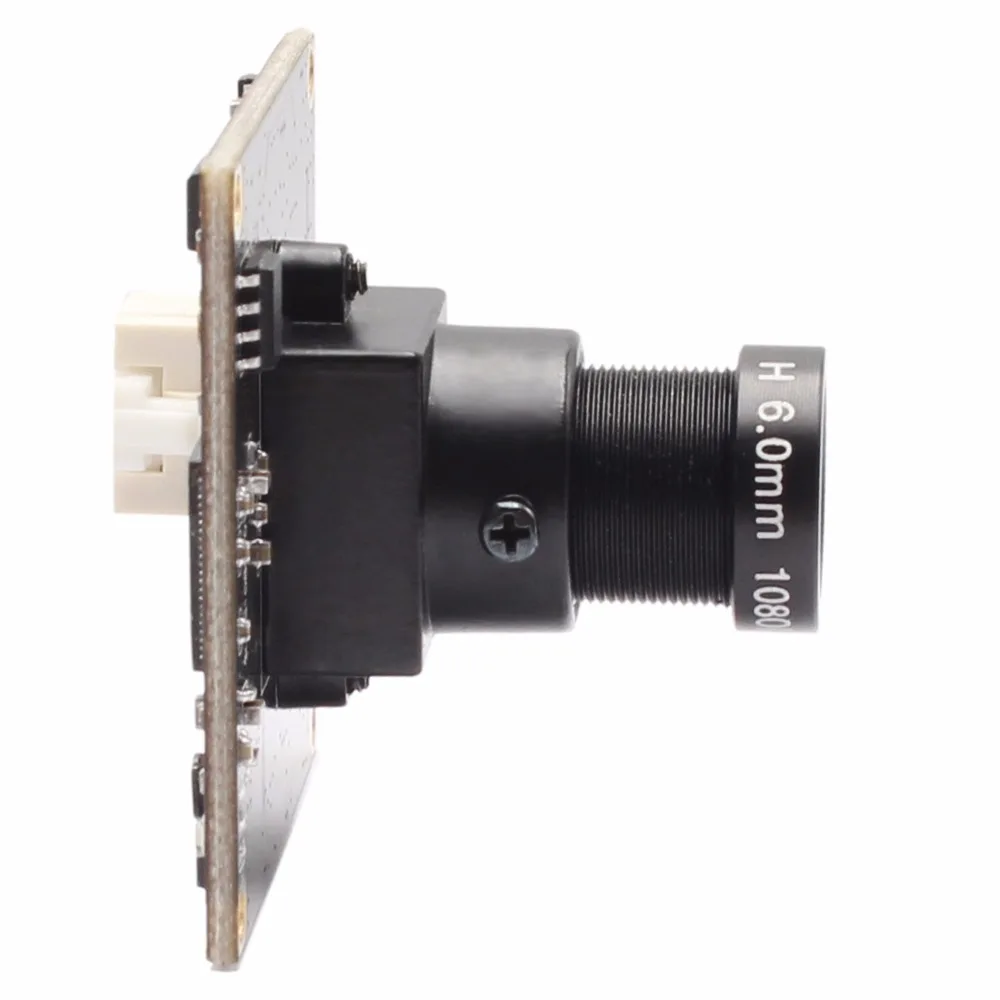

1080P MJPEG /YUYV 50fps USB3.0 Camera Module



IMG_2464IMG_2446IMG_2455

IMG_2462IMG_2439IMG_2442IMG_2444

1

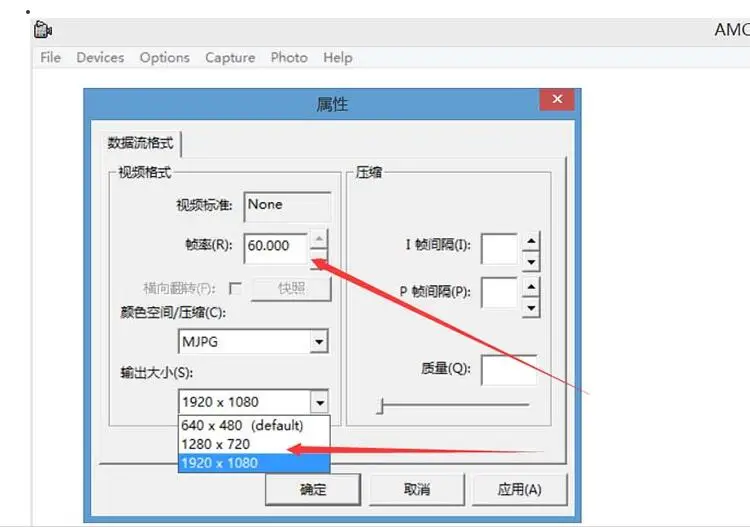

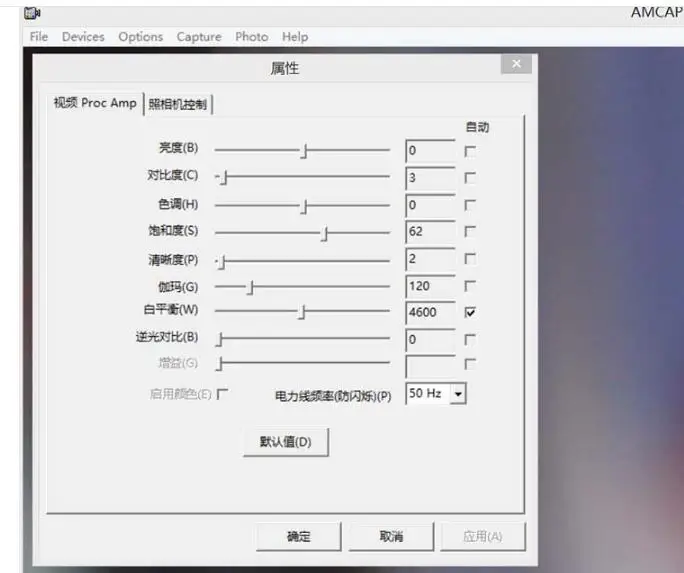

Camera parameters show:





020304

Effect picture:

1

If you want 2m/3m cable, please point following picture:

usb cable 3.0
